Conventional valves
Globe Valves
Cast iron, cast steel, brass/bronze and forged steel globe valves — 08 MM NB to 900 MM NB.
Compare
Globe Valves specifications side by side
Published values for each type. Full materials of construction on each product page.
| Type | Design standard | Size range | Class | End connection |
|---|---|---|---|---|
| Cast Iron / Malleable Iron Globe Valves | BS 5152, IS 9338, MSS SP 85 | 50 MM NB (2") to 600 MM NB (24") | PN 1.0, PN 1.6 | Flanged End, Screwed Threaded End to ANSI B1.20.1, Spigot-Socket IS:1538 |

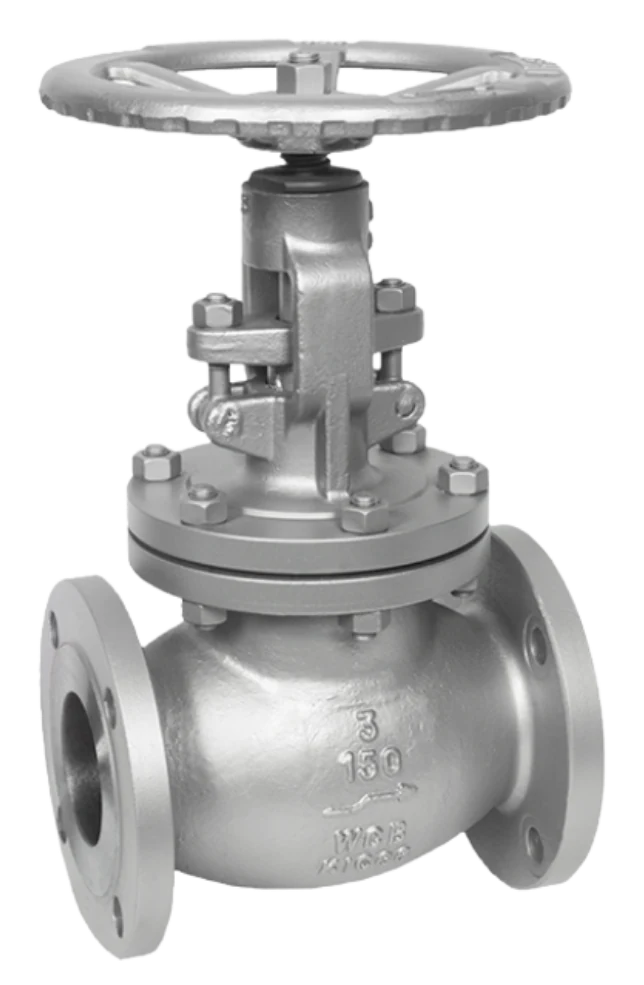

| Cast Steel Globe Valves | BS 1873, API 623, IS 10605, BS 5160, MSS SP 42 | 50 MM NB (2") to 900 MM NB (36") | 150#, 300#, 600#, 900#, 1500#, 2500# | Flanged End, Screwed Threaded End to ANSI B1.20.1, Socket Weld End to ANSI B16.11, Butt Weld End to ANSI B16.25 |

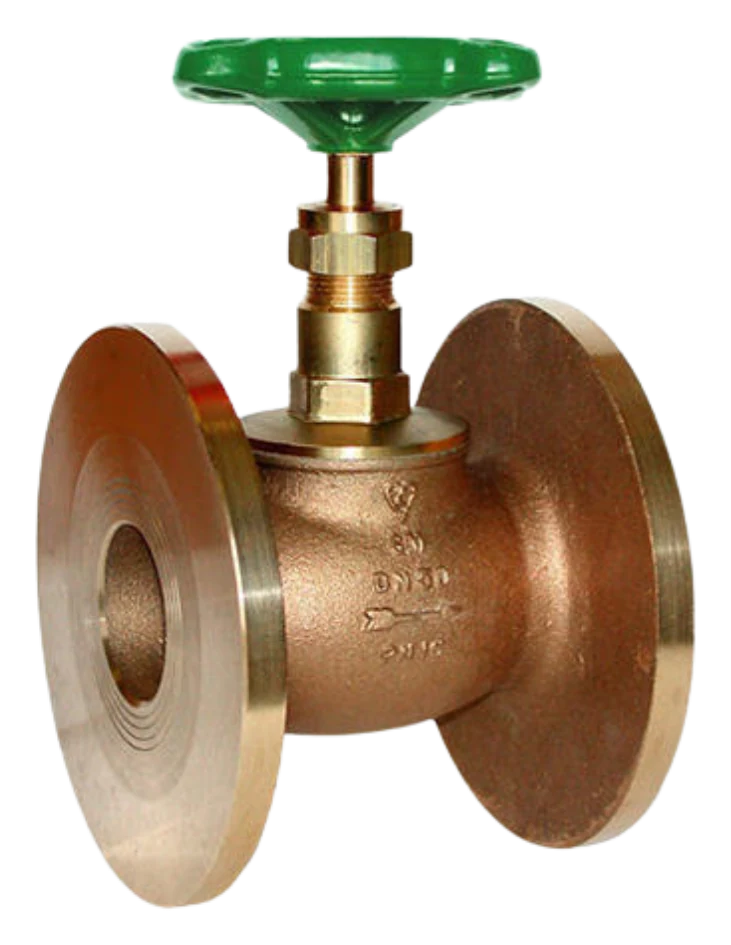

| Brass / Bronze Globe Valves | IS 778, IS 13114, MSS SP 80 | 8 MM NB (1/4") to 100 MM NB (4") | 125#, 150#, 200#, 300#, 350# | Flanged End to IS 778, ANSI B16.24, Screwed-Threaded End to ANSI B1.20.1 |

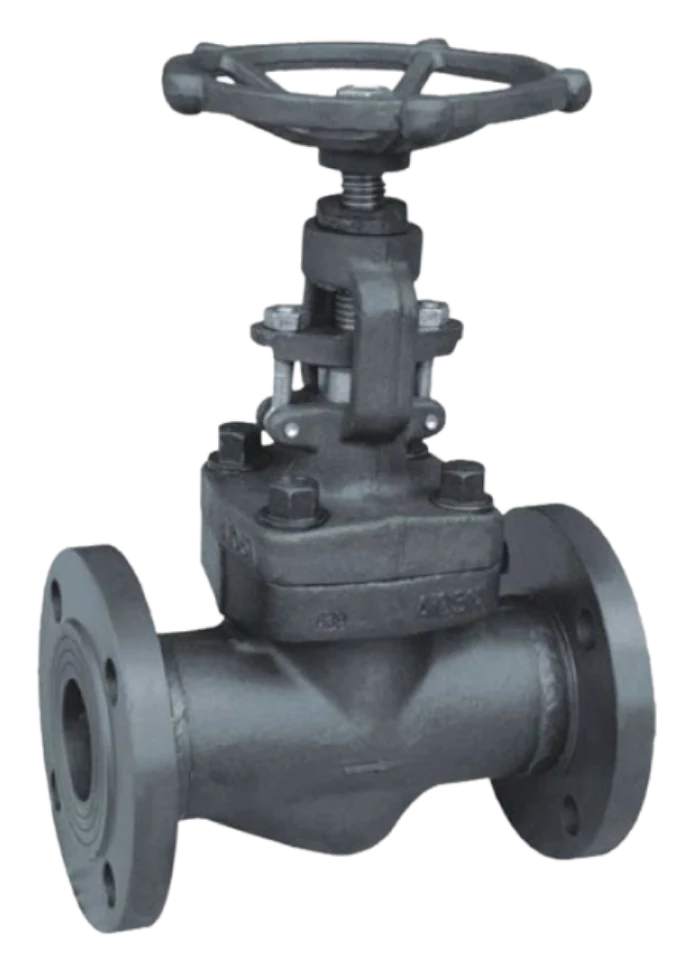

| Forged Steel Globe Valves API 602 | API 602, BS 5352 | 15 MM NB (1/2") to 150 MM NB (6") | 150#, 300#, 600#, 800#, 1500#, 2500# | Flanged End, Screwed Threaded End to ANSI B1.20.1, Socket Weld End to ANSI B16.11, Butt Weld End to ANSI B16.25 |
Need a globe valves for a specific duty?
Send us the service conditions and we will recommend the right type, material and trim.
