Conventional valves
Ball Valves
One piece, 2 piece and 3 piece ball valves — 8 MM NB to 600 MM NB, 150# to 1500#.
Compare
Ball Valves specifications side by side
Published values for each type. Full materials of construction on each product page.
| Type | Design standard | Size range | Class | End connection |
|---|---|---|---|---|
| One Piece Ball Valves | API 608, API 6D, IS:11792, BS: 5351, BS: 5159, MSS SP 72, IS:9890 | 8 MM NB (1/4") to 600 MM NB (24") | 150#, 300#, 600#, 900#, 1500# | Flanged End, Screwed Threaded End to ANSI B1.20.1, Socket Weld End to ANSI B16.11, Butt Weld End to ANSI B16.25 |

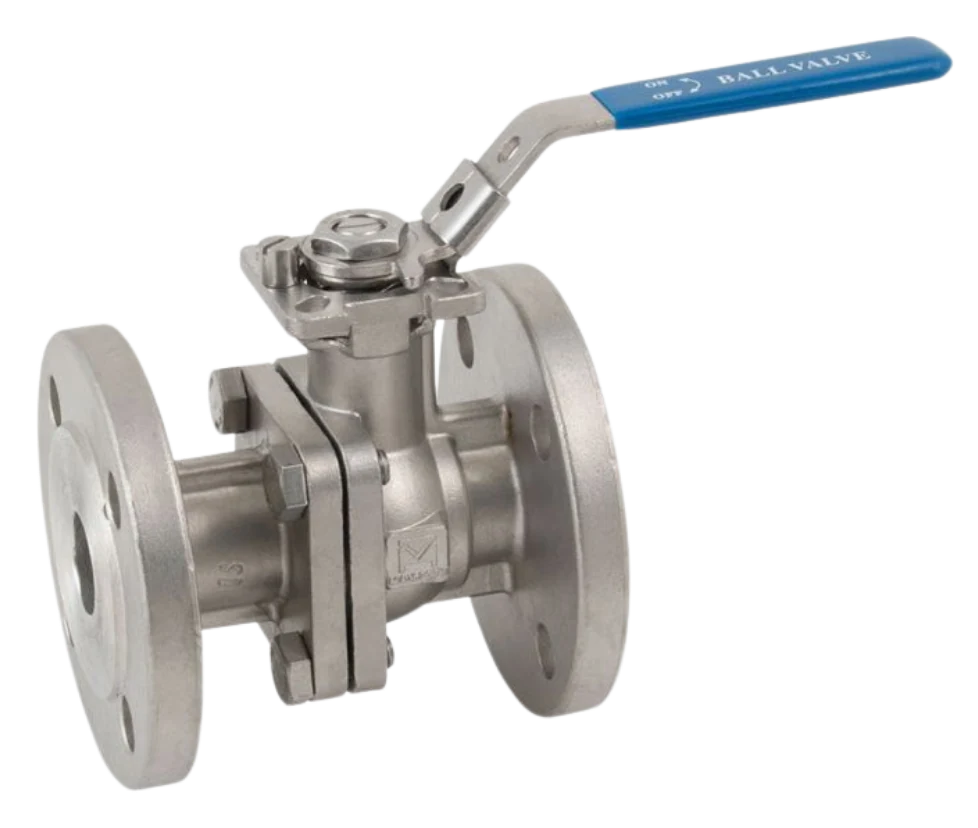

| 2 Piece Ball Valves | API 608, API 6D, IS:11792, BS: 5351, BS: 5159, MSS SP 72, IS:9890 | 8 MM NB (1/4") to 600 MM NB (24") | 150#, 300#, 600#, 900#, 1500# | Flanged End, Screwed Threaded End to ANSI B1.20.1, Socket Weld End to ANSI B16.11, Butt Weld End to ANSI B16.25 |

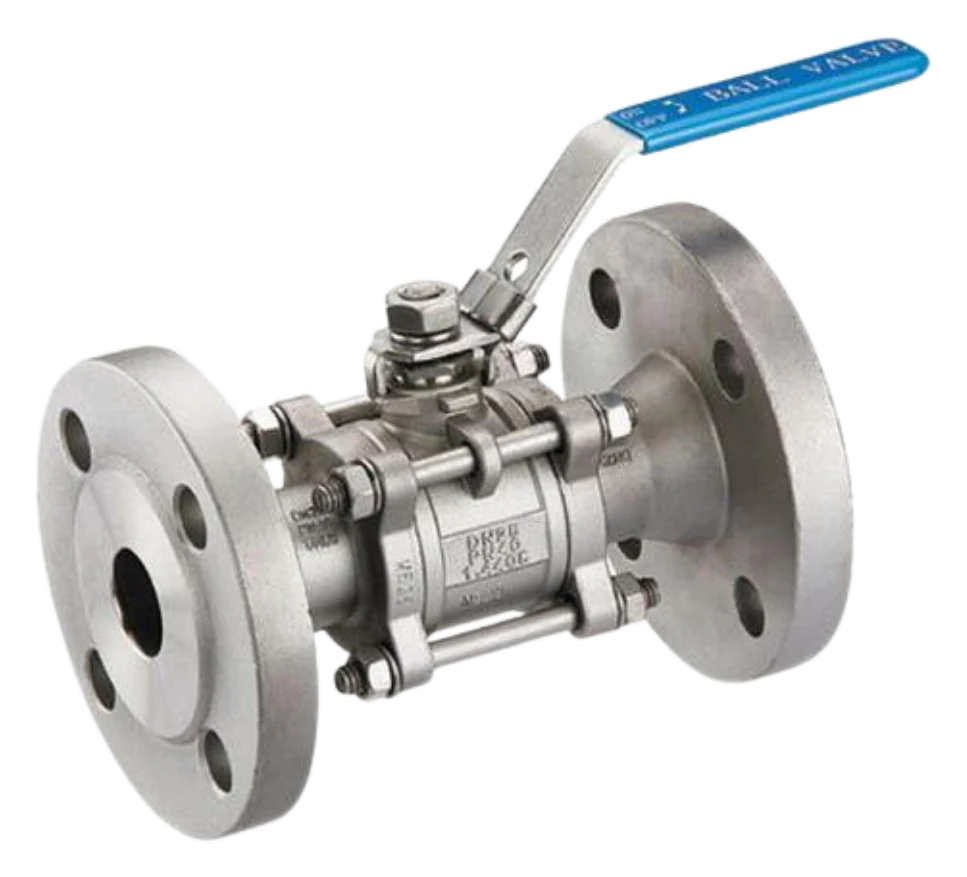

| 3 Piece Ball Valves | API 608, API 6D, IS:11792, BS: 5351, BS: 5159, MSS SP 72, IS:9890 | 8 MM NB (1/4") to 600 MM NB (24") | 150#, 300#, 600#, 900#, 1500# | Flanged End, Screwed Threaded End to ANSI B1.20.1, Socket Weld End to ANSI B16.11, Butt Weld End to ANSI B16.25 |
Need a ball valves for a specific duty?
Send us the service conditions and we will recommend the right type, material and trim.
