Conventional valves
Air Valves & Strainers
Kinetic, double acting, tamper proof and double lobe air valves, plus basket and Y type strainers.
Compare
Air Valves & Strainers specifications side by side
Published values for each type. Full materials of construction on each product page.
| Type | Design standard | Size range | Class | End connection |
|---|---|---|---|---|
| Kinetic Air Valve | IS:14845, AWWA C 512 | 50 MM NB (2") to 1200 MM NB (48") | PN 1.0, PN 1.6, PN 2.0, 150#, 300# | Flanged End to ASME B16.5, Screwed/Threaded End to ASME B1.20.1 |
| Double Acting Air Valves | IS:14845, AWWA C 512 | 50 MM NB (2") to 1200 MM NB (48") | PN 1.0, PN 1.6, PN 2.0, 150#, 300# | Flanged End to ASME B16.5, Screwed/Threaded End to ASME B1.20.1 |
| Tamper Proof Air Valves | AWWA 512 | 50 MM NB (2") to 300 MM NB (12") | PN 1.0, PN 1.6, 150#, 300# | Flanged End |
| Double Lobe Air Valves | IS: 14845, AWWA C 512 | 50 MM NB (2") to 1200 MM NB (48") | PN 1.0, PN 1.6, PN 2.0, 150#, 300# | Flanged End to ASME B16.5, Screwed/Threaded End to ASME B1.20.1 |
| Basket Type Strainers | Manufacturer Standard | 50 MM NB (2") to 1200 MM NB (48") | 150#, 300#, 600# | Flanged End, Screwed Threaded End to ANSI B1.20.1 |

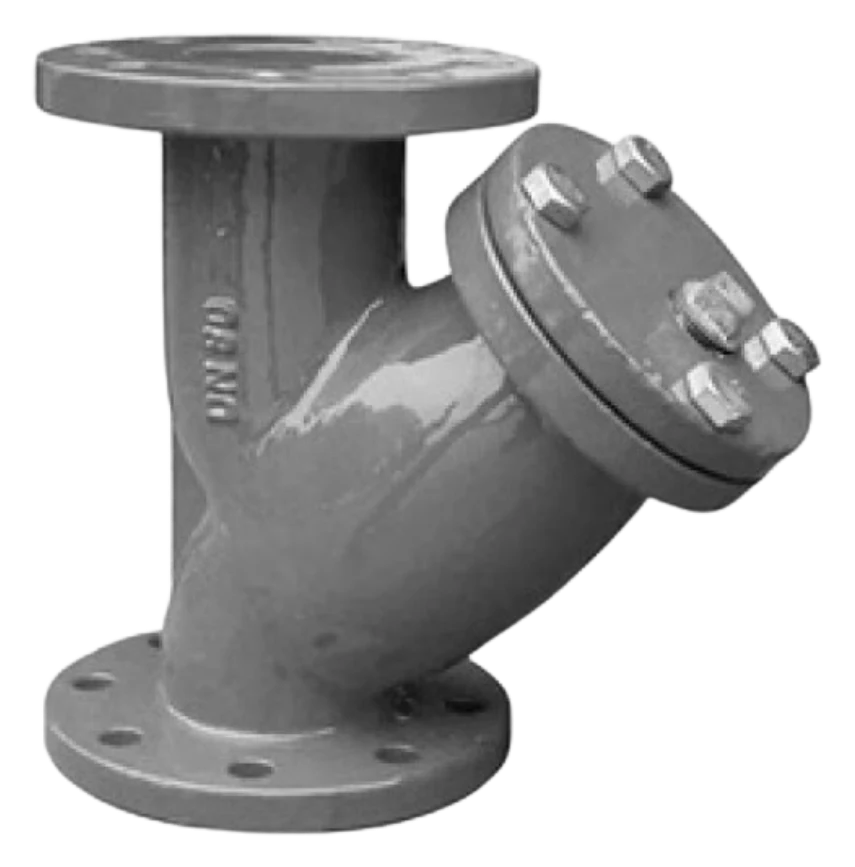

| Y Type Strainers | Manufacturer Standard | 50 MM NB (2") to 1200 MM NB (48") | 150#, 300#, 600# | Flanged End, Screwed Threaded End to ANSI B1.20.1 |
| Air Cushion Valve | IS 4038 | 50 MM NB (2") to 900 MM NB (36") | PN 1.0, PN 1.6, 150#, 300# | Flanged End to ASME B16.5, Screwed/Threaded End to ASME B1.20.1. |
Need a air valves & strainers for a specific duty?
Send us the service conditions and we will recommend the right type, material and trim.
